H.F. X-RAY GENERATOR
40 kHz – 100 kHz – 32 kW – 40 kW
125 kV- 400 mA -320 mAs (400mAs opt)
X-RAY TUBE
0.6×1.3 mm – 110 kHU – 1000 kHU
FLAT PANEL DETECTOR
35×43 cm – 2500×3000 pixels –
140 mm – 16 bit – Wireless – 3 kg
Ability to charge via cable on the device

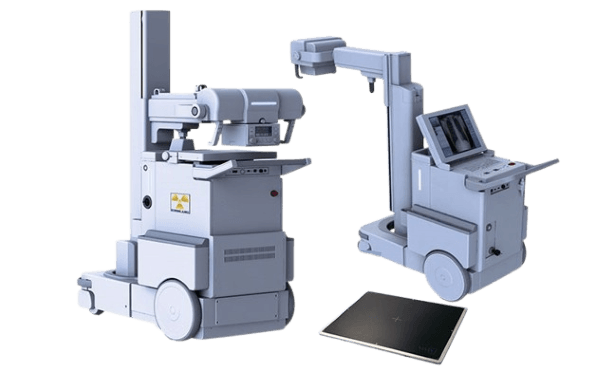

MOBILE BODY
Motorized Movement
Battery Assisted Driving
Battery-Backed Full Charge 100 Movie Shots
Electronic Sensor Drive Lever
+/-90 degrees Tube Rotation
+/-180 degrees Tube Stand Rotation
WORKSTATION AND CONTROL PANEL
15” LCD Touch Screen – (19”- Opt)
Image Processing Software
DICOM 3.0 Standard
Wi-Fi – Wirelessly Sending Images to PACS System
DICOM SR
COLIMATOR
Manual Control
